Performance oil pump modifications for the Slant Six

First, read this technical article:

http://www.slantsix.org/articles/oil-pump-gear/failure-fix-report.htm

One thing this article does not address is the aeration of the oil.  The gerotor designs of the pumps (both the cloverleaf and star gear pumps are gerotor designs) have some elements that help to reduce aeration and entrainment of actual bubbles in the oil as well as possible cavitation damage.

The passages or cavities in the pumps allow the changing volumes in the pumps to communicate with each other.  In doing so they allow free air in the oil to transfer backwards and be worked more gradually into the oil whether by dissolution or entrainment.  The pressure relief bypass back into the low pressure side of the pump makes it more efficient with respect to the volume of oil needed to feed it, directly from the sump.

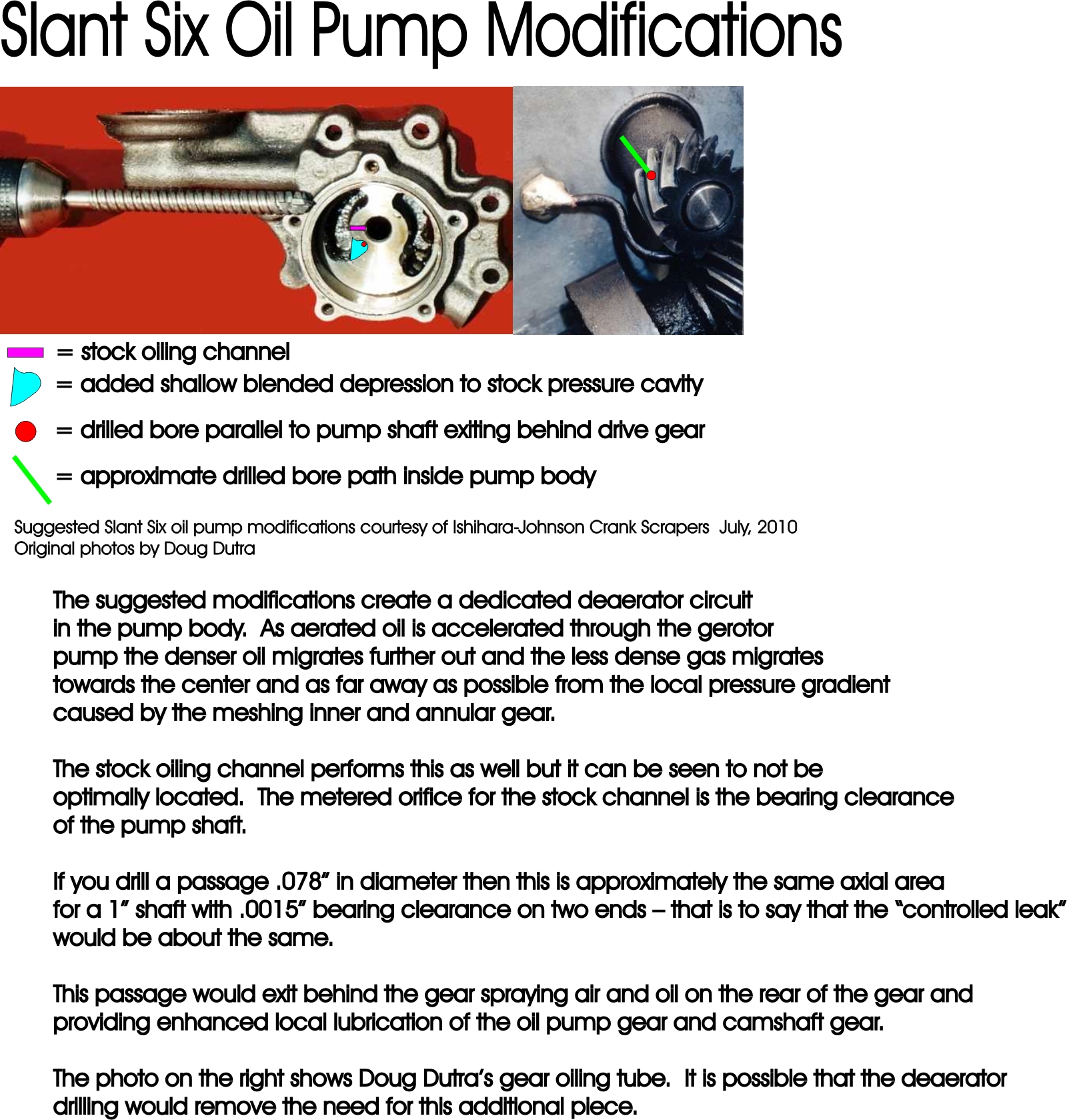

The modifications in the picture below introduce a dedicated deaerator circuit into the pressure cavity.  The small amount of oil and large amount of gas allowed to be bypassed back into the sump area performs a useful secondary function by oiling the pump drive gear.  This additional oil will help with the known camshaft and pump drive problems.  By allowing much more entrained gas to escape more quickly from the internals of the pump the shock loads to the gears and their loading areas will also be reduced.
