We will try to keep this list updated but if you do not see your engine listed here please ask!  We can provide templates for initial fitting and adjustment. Templates cost $100 and are a separate charge from the scraper pattern chosen.

We have included some representative pictures of the scrapers we make.  If you would like to see a picture of a particular scraper please ask -- we would be more than happy to send one through.

When available (please enquire) our zero-clearance Teflon® scrapers run an additional $130.00 to the cost of the standard steel scraper unless noted.

Remember, your vehicle may have an engine made by a different manufacturer so check both product lines.  If you are still unsure, please contact us.

Ford



Copyright 2002-2024 © All rights are reserved on our product designs.

Ford 2.0, 2.3, 2.5 OHC Lima motor -- triple scraper. (Please tell us which engine as the patterns are different)

The triple scraper works on both the downstroke and upstroke of the engine.  Only $134.95

A Teflon® bladed version of this scraper set is available: $394.00 (there are two Teflon bladed scrapers in this triple set).

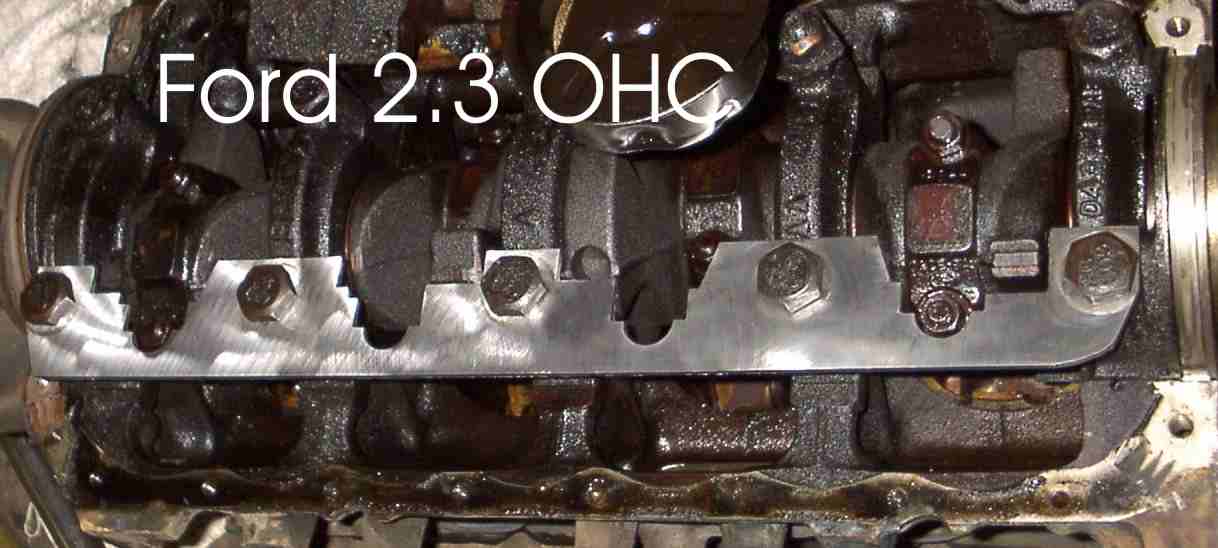

The first upstroke scraper fits along the main bearing caps:

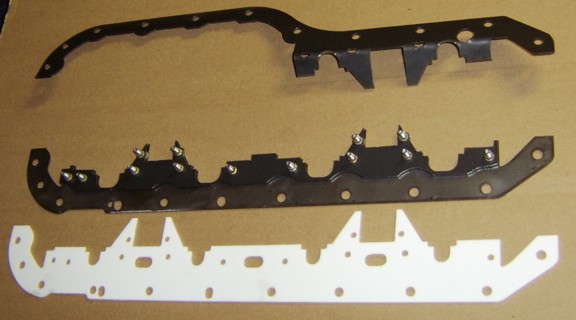

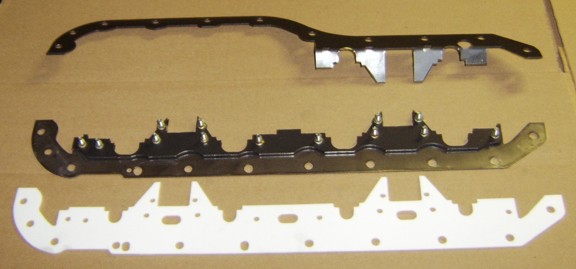

The second upstroke scraper fits along the oil pan rail as does the downstroke scraper.  Here is a picture of the Teflon version.  Some pans do not have sufficient space for the third main-cap-mounted scraper.  The dual set below is available for $89.95 in steel and $219.95 for the Teflon bladed version shown:

This is a picture of 2.5 steel dual scrapers:

This is a picture of the 2.5 liter third main cap scraper for use with the Essliger Engineering strap kit:

We have received very positive feedback on the triple scraper set (Lima) and the EAO 2.0 in Hydroplane applications from a number of different customers.

Update:

I thought you might like to hear of our latest success.  On April 25th 2010 in Moses Lake, WA we set a new world speed record for a 1 ¼ mile course with our 2.3 Ford powered APBA Hydroplane using your triple Teflon scraper.  The old record had stood for over 10 years!

~~~~~~~~~~~~~~~~~



2008 was our first season in APBA 2.5 stock hydroplanes, and we used your triple scraper setup in our 2.3 Liter Ford engine.  We won the very first race we entered in Yelm Washington, ran second several times, won again in Pateros Washington, and finished the season 5th place in national points.  Not bad for our first year, but we’re looking to improve about four positions in 2009!

Thank you!

Scott

Scott Meyers

Meyers' Auto Tech Inc

www.meyersautotech.com

Copyright 2002-2024 © All rights are reserved on our product designs -- a great deal of hard work goes into each one.

Teflon® is a registered trade mark of E.I. du Pont de Nemours and Company. Only DuPont makes Teflon® resin sourced by Ishihara-Johnson Crank Scrapers from authorized DuPont licensees.
